2-Aspect Led Traffic Light Body

2-Aspect Led Traffic Light Body

2-Aspect Led Traffic Light Body is the outer part of our 200MM Traffic Signal Light, which also includes 200MM Traffic Signal Light LED module as its inner part, these 2 parts together make one whole piece of our 200MM Traffic Signal Light.
  • Model Number:
  • 2-Aspect Led Traffic Light 8 Inch(200MM)
  • Housing Body:
  • UV PC Plastic+2-Section
  • LED Module:
  • Optional
  • LED Color:
  • Optional
  • LED Number:
  • Optional
  • Shape:
  • Round Or Square
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*550(650)MM/184+200MM φDiameter
  • Lenses：
  • Optional
  • Wavelength:
  • Optional
  • Input Voltage:
  • Optional
  • Light Source:
  • Optional
  • Communicate:
  • Optional
  • Power Factor:
  • Optional
  • Power Consumption:
  • Optional

Product Details:

2-Section Detachable & Attachable PC(Polycarbonate) Traffic Signal Light Body: 270*110*550(650)MM

Upgradeable Installation Bracket: Internal-Wiring Aluminum Bracket Instead Of Steel Bracket

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

2 Aspect/Section Led Traffic Light Body, as 8Inch(200MM)*2/202 2 Aspect/Section Led Traffic Light Body, as 8Inch(200MM)*2/202
2 Aspect/Section Led Traffic Light Body, as 8Inch(200MM)*2/202

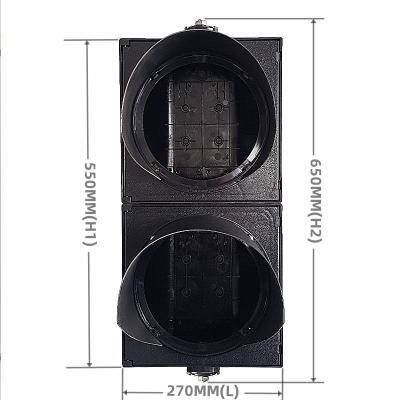

Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 650MM/550M(No Bracket) Detachable visior: 155MM length, non-detachable

2-Aspect Led Traffic Light Body is the outer part of our 200MM Traffic Signal Light, which also includes 200MM Traffic Signal Light LED module as its inner part, these 2 parts together make one whole piece of our 200MM Traffic Signal Light.

2-Aspect Led Traffic Light Body has detachable feasure, one section traffic signal light body plus another one section will make 2-section traffic signal light body easily by its long bolts and nuts connected through the middle parts of 2 sections.

2-Aspect Led Traffic Light Body has 2 standard accessories as 1 set of metal steel brackets and 2 pieces of PC plastic visors. Top bracket and bottom bracket is considered as one set for installing on a light pole. Each visor is fixed into the front of each raffic signal light body, providing a better viewing angle for any driver and pedestrian on road.
