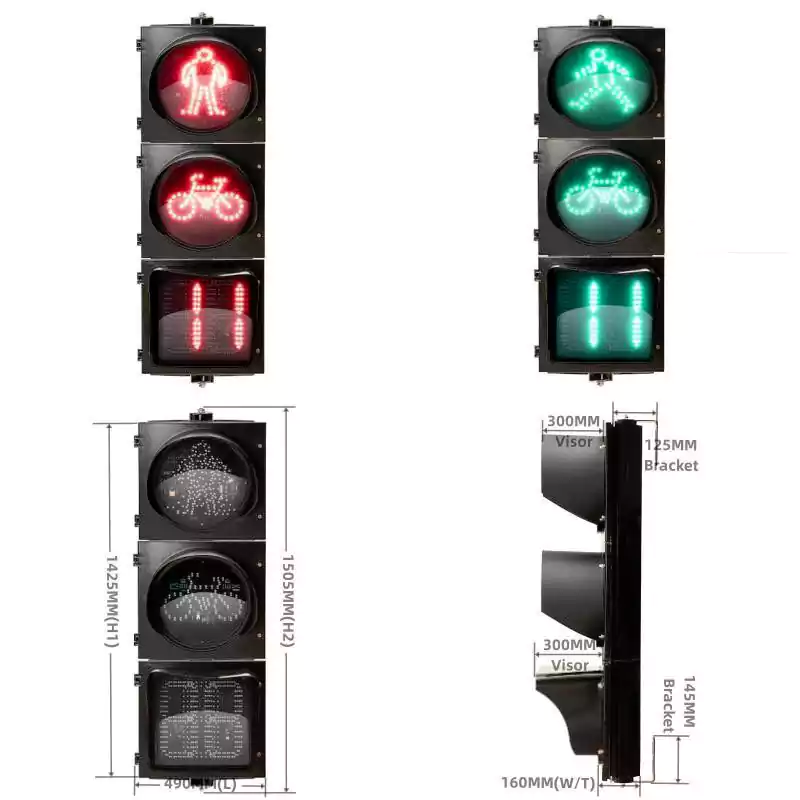

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer is one kind of our Pedestrian Traffic Light series, which often includes red&green pedestrian traffic light and bicycle traffic light and its additional traffic light countdown timer, reminding any pedestrian when to go or stop for any crossing.
  • Model Number:
  • 3-Aspect Led Traffic Light 16 Inch(400MM)
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red Green Pedestrian+Bicycle+Timer
  • LED Number:
  • 75+124/P+60*2/B+168*2/T
  • Shape:
  • Round/Square By Pedestrian+Bicycle+Timer

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1425/1505MM+φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

Round+Square Mixed Shape Design: Standard Round Design And Max Square Design Space For Larger Look On Timer

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

3-Aspect Detachable PC(Polyczrbonate) Traffic Light Body: 490*160*1425/1505MM+φ338/335MM Diameter

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

3 Aspects/Sections LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer,  as 16 Inch(400MM)*3/403 3 Aspects/Sections LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer,  as 16 Inch(400MM)*3/403
3 Aspects/Sections LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer,  as 16 Inch(400MM)*3/403

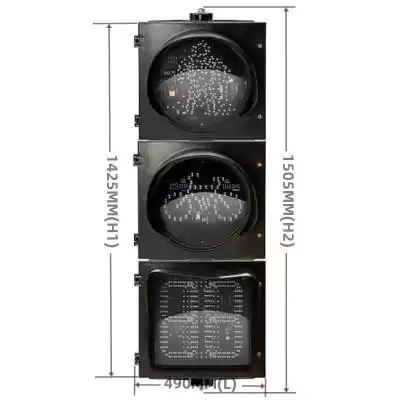

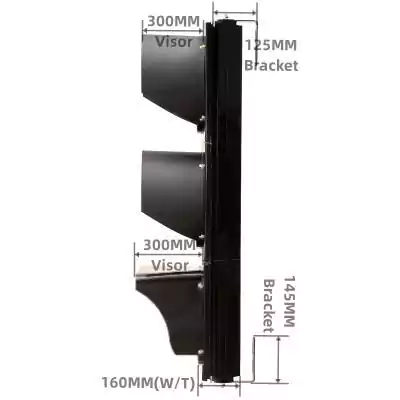

Length:490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set
Height: 1425/1505MM(No Bracket) Detachable visior: 300MM length

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer is one kind of our Pedestrian Traffic Light series, which often includes red&green pedestrian traffic light and bicycle traffic light  and its additional traffic light countdown timer, reminding any pedestrian when to go or stop for any crossing.

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer has round and square mixed shape design, including standard round shape for pedestrian and bicycle lights, and Max square shape with larger space for its traffic light countdown timer.

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer has 2 statuses, including red pedestrian and bicycle light time for stop and green pedestrian and bicycle light time for go.

3-Aspect LED Traffic Light With Pedestrian Bicycle Signal Countdown Timer has its own countdown timer, it will will more clearly remind any cyclist to stop and cross at a road by its remaining red and green time.
