4 Inch(100MM) Traffic Light Repair Yellow LED Module

Model Number:
Traffic Light Repair NJGQ-DX-100-1YS1
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
Red/Yellow/Green Ball, Single Color
LED Number:
26PCS/R+26PCS/Y+26PCS/G
Shape:
Round With Ball Design

Product Details

Bascinfo:

Product Size:
120*120*70MM/100MM Diameter
Lenses：
Transparent & Flat
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

1-Aspect Mini Size Housing Body: 120*70MM

Transparent Rotary Cover: Easy Installation And Possible Repair

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

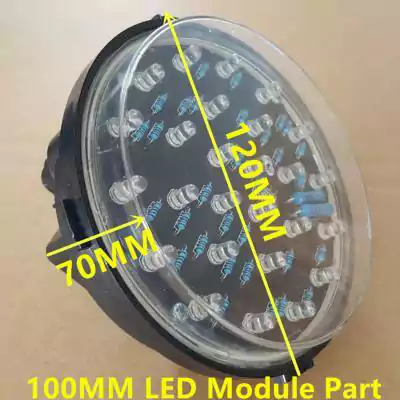

100MM Traffic Light Repair Yellow LED Module
Length: 120MM	Mounting And Fixing Ears: 4
Width/Thickness: 120MM	Inner Sealing Ring: Yes
Height: 70MM	Detachable visior: No

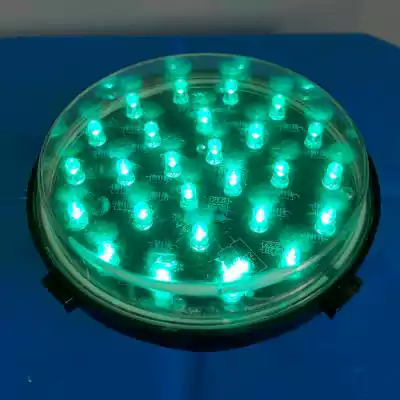

4 Inch(100MM) Traffic Light Repair Green LED Module is the inner part of our 100MM traffic light, which also includes 100MM housing body as its outer part, these 2 parts together make one whole piece of our 100MM traffic light.

4 Inch(100MM) Traffic Light Repair Green LED Module includes its all electrical parts, an inner housing body for holding all these electrical parts, an inner sealing ring for first-level water and dust protection, a transparent and flat lens, and an outer sealing ring for second-level waterproof and dustproof.

4 Inch(100MM) Traffic Light Repair Green LED Module has 5MM diameter LEDs, Printed Circuit Board named as PCB, suitable resistors for adjusting the brightness, possible power transformer if it is direct current input supply.

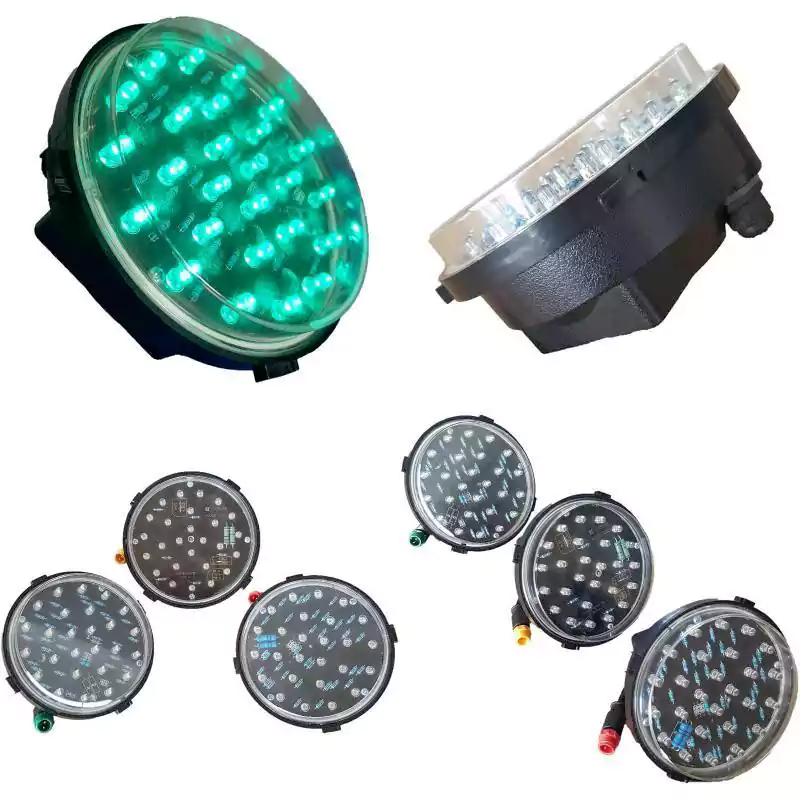

4 Inch(100MM) Traffic Light Repair Green LED Module can be single color as red named as R or yellow named as Y or green named as G, double-color as red&green named as RG, as well as triple-color as red&yellow&green named as RYG.

4 Inch(100MM) Traffic Light Repair Green LED Module has both round body and suqare body for your choice, and it will be suitable for its outer round or suqare housing body together as a whole set.
