200MM(8 Inch) 1-Section Led Traffic Light Body

Model Number:
8 Inch 1-Section Led Traffic Light Body
Housing Body:
270*110*375(275)MM
LED Module:
UV PC Plastic+1-Section
LED Color:
Optional
LED Number:
Optional
Shape:
Round Or Square

Product Details

Bascinfo:

Product Size:
270*110*375(275)/184+200MM Diameter
Lenses：
Optional
Wavelength:
Optional
Input Voltage:
Optional
Light Source:
Optional
Communicate:
Optional
Power Factor:
Optional
Power Consumption:
Optional

Product Details:

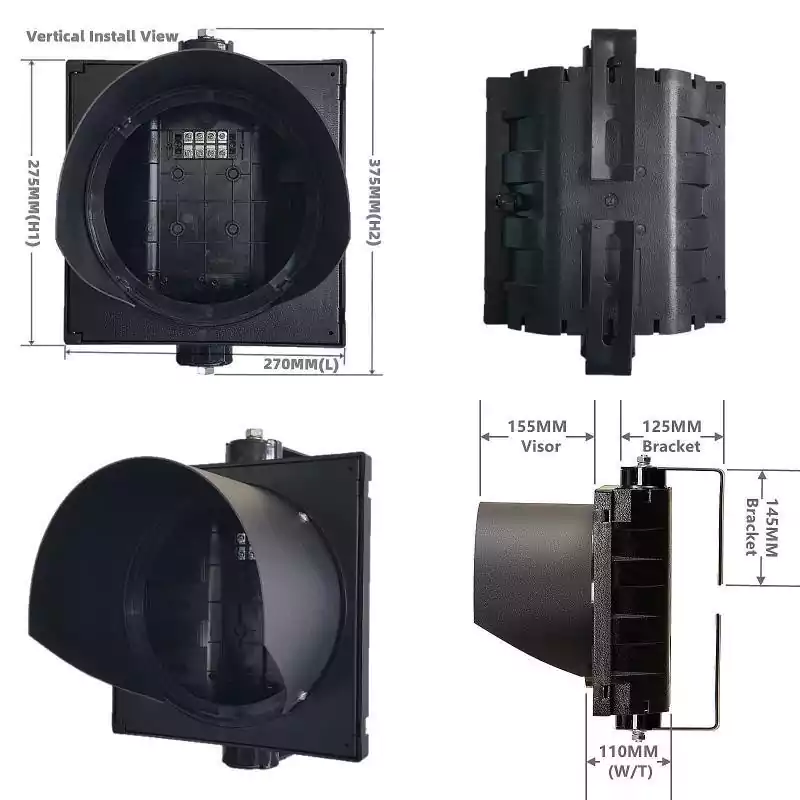

200MM1 1-Section Addable Traffic Light Body: 270110*375(275)MM


Led Traffic Lights Body 200MM, 1 aspect/section as 200MM*1/201

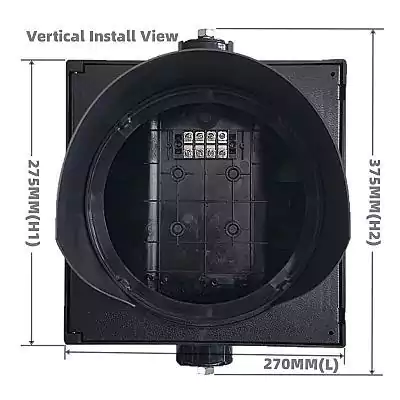

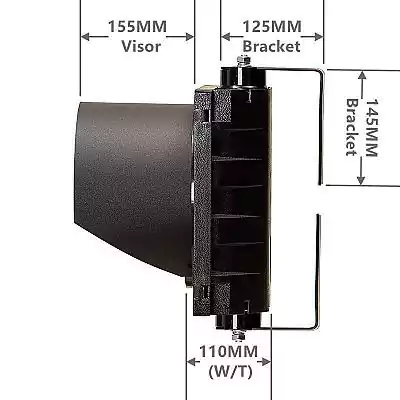

Length: 270MM	Steel bracket: 125MM*145MM
Width/Thickness: 110MM	Top bracket and bottom bracket as one set
Height with bracket: 375MM	Detachable visior: 155MM length, non-detachable

200MM(8 Inch) 1-Section Led Traffic Lights Body is the outer part of our 200MM Led Traffic Lights, which also includes 200MM Traffic Light LED module as its inner part, these 2 parts together make one whole piece of our 200MM Traffic Light.

1-Section Addable Led Traffic Lights Body is addable, it can be easily added to be 2 sections or more sections by placing long bolts and nuts through the middle parts of the same 2 or more sections.

It has 2 standard accessories as 1 set of metal steel brackets and 1 piece of PC plastic visors. Top bracket and bottom bracket is considered as one set for installing on a light pole. Each visor is fixed into the front of each raffic signal light body, providing a better viewing angle for any driver and pedestrian on road.
