200MM(8 Inch) Led Traffic Light Countdown Timer With 2-Aspect Red Green Pedestrian

200MM(8 Inch) Led Traffic Light Countdown Timer With 2-Aspect Red Green Pedestrian

  • Model Number:
  • 8 Inch 2-Aspect Red Green Pedestrian Traffic Light
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RG Pedestrian And RG Timer
  • LED Number:
  • 50+70PCS/P+56*2+28*1PCS/T
  • Shape:
  • Round With RG Pedestrian And Timer
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*650(550)MM/184+200MM Diameter
  • Lenses：
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

2-In-1 Design: Each Aspect Have 2 Colors Together For Min Cost

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

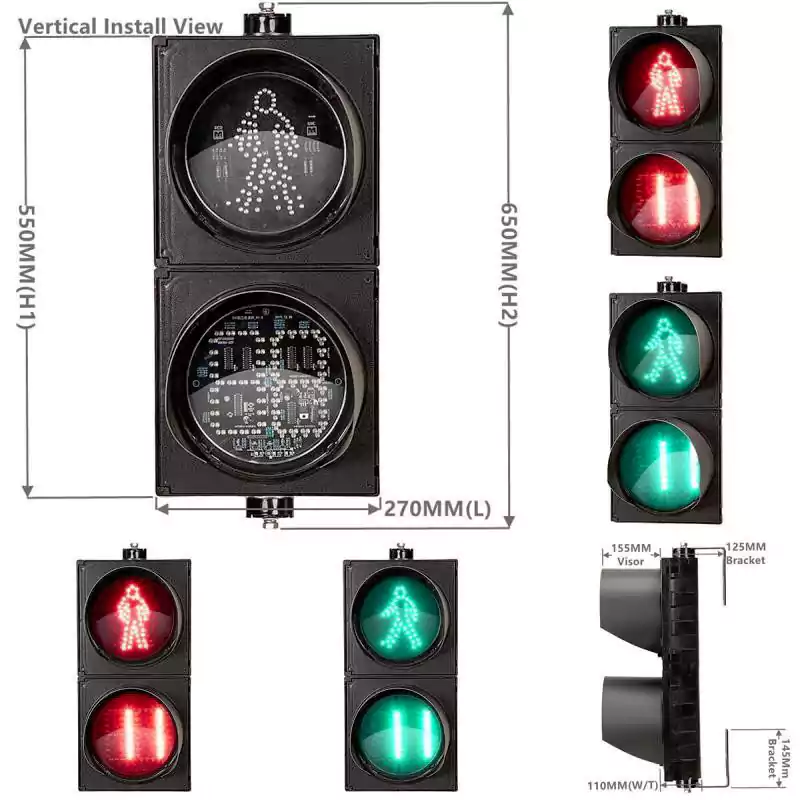

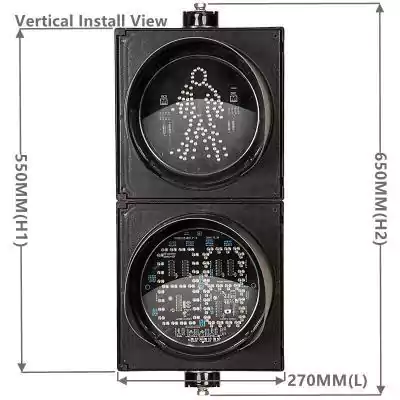

2-Section Detachable Traffic Signal Light Body: 270*110*650(550)MM

200MM(8 Inch) Led Traffic Light Countdown Timer With 2-Aspect Red Green Pedestrian 200MM(8 Inch) Led Traffic Light Countdown Timer With 2-Aspect Red Green Pedestrian
200MM(8 Inch)  Led Traffic Light Countdown Timer With 2-Aspect Red Green Pedestrian, 2 aspect/section as 200MM*2/202
Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height with bracket: 650MM Detachable visior: 155MM length

200MM(8 Inch) Led Traffic Lights Countdown Timer With 2-Aspect Red Green Pedestrian is one kind of our 100MM to 500MM Pedestrian Traffic Light, which often has pedestrain traffic light and pedestrain countdown timer as a whole set, reminding any pedestrain when to go or stop for any crossing.

200MM(8 Inch) Led Traffic Lights Countdown Timer With 2-Aspect Red Green Pedestrian only has 2 aspect traffic light bodys,each traffic light body has 2-in-1 design, which means both aspects have 2 colors together as red and green.

200MM(8 Inch) Led Traffic Lights Countdown Timer With 2-Aspect Red Green Pedestrianhas 2 statuses, including red Pedestrian Traffic Light time for stop, and green Pedestrian Traffic Light time for go.
