200MM(8 Inch) Led Traffic Light Countdown Timer With 3-Aspect Red Green Ball LED

200MM(8 Inch) Led Traffic Light Countdown Timer With 3-Aspect Red Green Ball LED

  • Model Number:
  • 8 Inch 3-Aspect Red Green Ball Led Traffic Lights Countdown Timer
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RG Balls With RG Timer
  • LED Number:
  • 126PCS*2/B+56*2+28*1PCS/T
  • Shape:
  • Round With Ball And Timer
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*650(550)MM/184+200MM Diameter
  • Lenses：
  • Transparent&Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

3-Aspect Detachable Traffic Light Body: 270*110*925(825)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

200MM(8 Inch) Led Traffic Light Countdown Timer With 3-Aspect Red Green Ball LED 200MM(8 Inch) Led Traffic Light Countdown Timer With 3-Aspect Red Green Ball LED

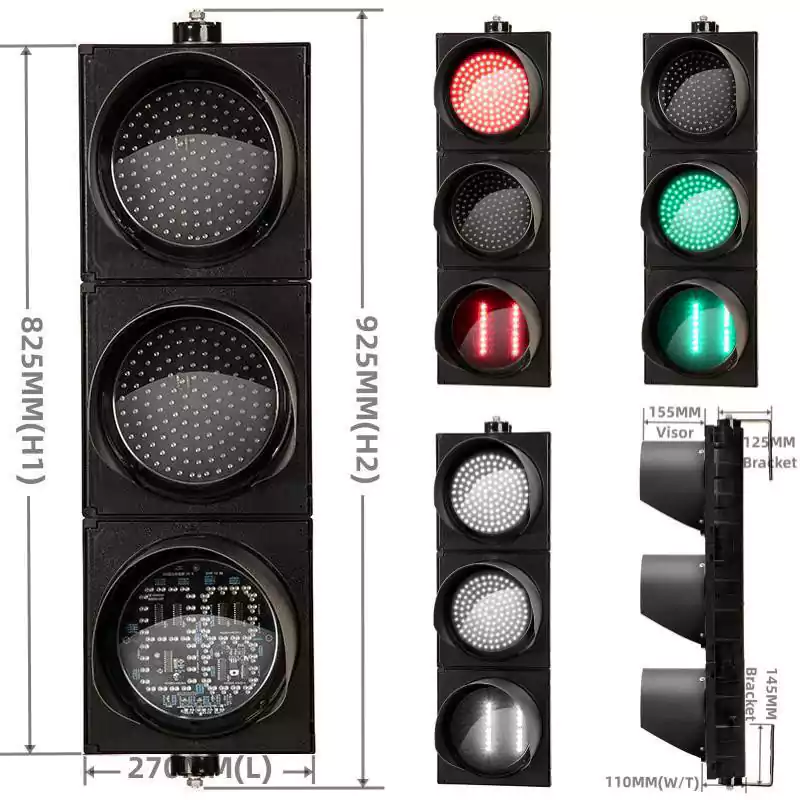

200MM(8 Inch)  Led Traffic Light Countdown Timer With 3-Aspect Red Green Ball LED, 3 aspect/section as 200MM*3/203

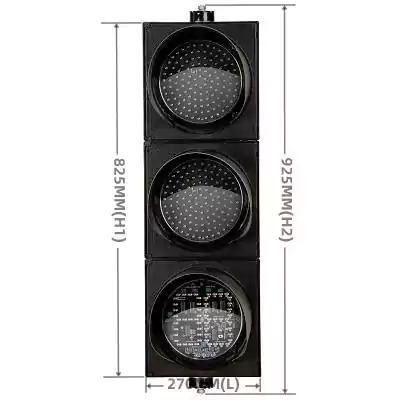

Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 925MM/825MM(No Bracket) Detachable visior: 155MM length

4 Inch(100MM) Solar Wireless Traffic Light For Parking And Access Control is one part of 100MM traffic light series, which include vehicle traffic light and pedestrian traffic light, as well as countdown timer, but it has solar power by wireless communication.

100MM diameter solar wireless traffic light is a kind of mini size traffic light, common for small road, parking lot and car washing station, as well as teaching tools.

4 Inch(100MM) Solar Wireless Traffic Light For Parking And Access Control has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

4 Inch(100MM) Solar Wireless Traffic Light For Parking And Access Control has 2 separate statuses, including red traffic light time for stop  and green traffic light time for go.

As a whole set of solar wireless traffic light system,  it should work with its wireless traffic light controller by getting its power from battery and solar panel as its power source.
