200MM(8 Inch) Led Traffic Light Timer With 3-Aspect Standard Pedestrian

200MM(8 Inch) Led Traffic Light Timer With 3-Aspect Standard Pedestrian

  • Model Number:
  • 8 Inch 3-Aspect Standard Pedestrian Led Traffic Light With Timer
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RG Pedestrian And RG Timer
  • LED Number:
  • 50+120PCS/P+56*2PCS/T
  • Shape:
  • Round With RG Pedestrian And Timer
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*650(550)MM/184+200MM Diameter
  • Lenses：
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

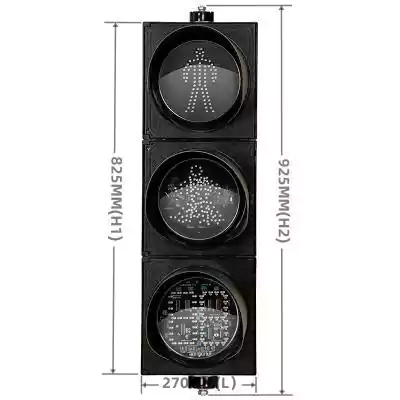

3-Aspect Detachable Traffic Light Body: 270*110*925(825)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

200MM(8 Inch) Led Traffic Light Timer With 3-Aspect Standard Pedestrian 200MM(8 Inch) Led Traffic Light Timer With 3-Aspect Standard Pedestrian

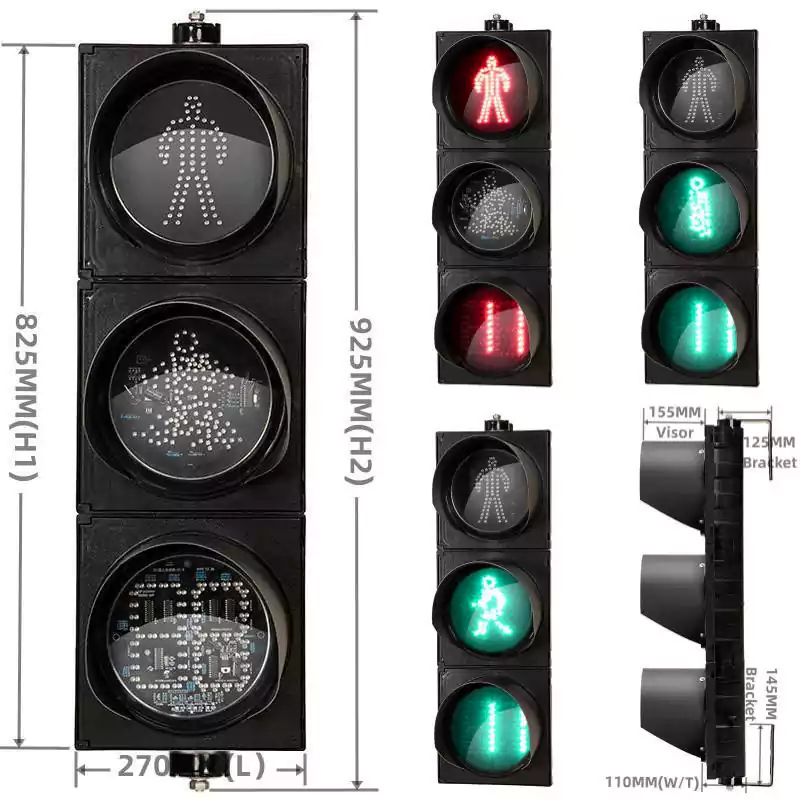

200MM(8 Inch)  Led Traffic Light Timer With 3-Aspect Standard Pedestrian, 3 aspect/section as 200MM*3/203
Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 925MM/825MM(No Bracket) Detachable visior: 155MM length

200MM(8 Inch) Led Traffic Lights Timer With 3-Aspect Standard Pedestrian is one kind of our 100MM to 500MM Pedestrian Traffic Light, which includes pedestrain traffic light and its countdown timer as a whole set, reminding people when to go or stop for any crossing.

200MM(8 Inch) Led Traffic Lights Timer With 3-Aspect Standard Pedestrian has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

200MM(8 Inch) Led Traffic Lights Timer With 3-Aspect Standard Pedestrian has has 2 separate statuses, including red pedestrian light time for stop and green pedestrian traffic light time for go.
