200MM(8 Inch) Led Traffic Light Timer With 4-Aspect Cobweb Lens

200MM(8 Inch) Led Traffic Light Timer With 4-Aspect Cobweb Lens

  • Model Number:
  • 8 Inch 4-Aspect Traffic Light Timer NJGQ-DJSJD-200-4YS/FS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RYG Balls+RYG Timer
  • LED Number:
  • 126PCS*3/B+56*2+28*1PCS/T
  • Shape:
  • Round With Ball And Timer
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*1200(1100)MM/184+200MM φDiameter
  • Lenses：
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

Double Lens Design: Inner Bulb Lens+Outer Cobweb Lens For Max Brightness

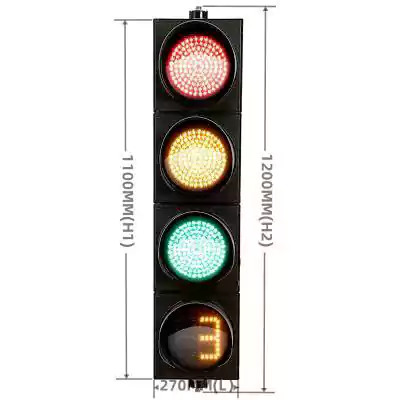

4-Aspect Detachable Traffic Light Body: 270*110*1200(1100)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

200MM(8 Inch) Led Traffic Light Timer With 4-Aspect Cobweb Lens 200MM(8 Inch) Led Traffic Light Timer With 4-Aspect Cobweb Lens
200MM(12 Inch)  Led Traffic Light Timer With 4-Aspect Cobweb Lens, 4 aspect/section as 200MM*4/204
Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 1200MM/1100MM(No Bracket) Detachable visior: 155MM length

200MM(8 Inch)  Led Traffic Lights Timer With 4-Aspect Cobweb Lens is one kind of our Vehicle Traffic Light series, which  often includes ball/arrow vehicle traffic light and its additional traffic light countdown timer,reminding any driver when to go or stop for any crossing.

200MM(8 Inch)  Led Traffic Lights Timer With 4-Aspect Cobweb Lens has 4 detachable traffic light bodies, and these 4 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

200MM(8 Inch)  Led Traffic Lights Timer With 4-Aspect Cobweb Lens has 3 separate statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.
