200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow

200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow

  • Model Number:
  • 8 Inch 3-Aspect Arrow Traffic Semaphore
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red+Yellow+Green Arrows
  • LED Number:
  • 57PCS/R+57PCS/Y+57PCS/G
  • Shape:
  • Round With Arrow
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*925(825)MM/184+200MM φDiameter
  • Lenses：
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

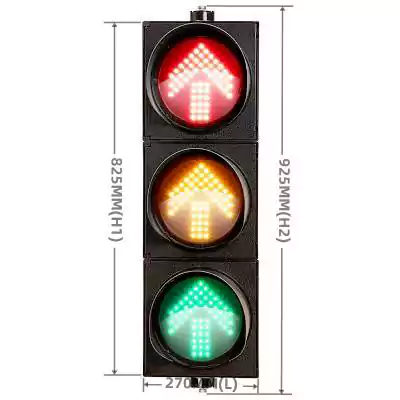

3-Aspect Detachable Traffic Light Body: 270*110*925(825)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow 200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow
200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow, 3 aspect/section as 200MM*3/203

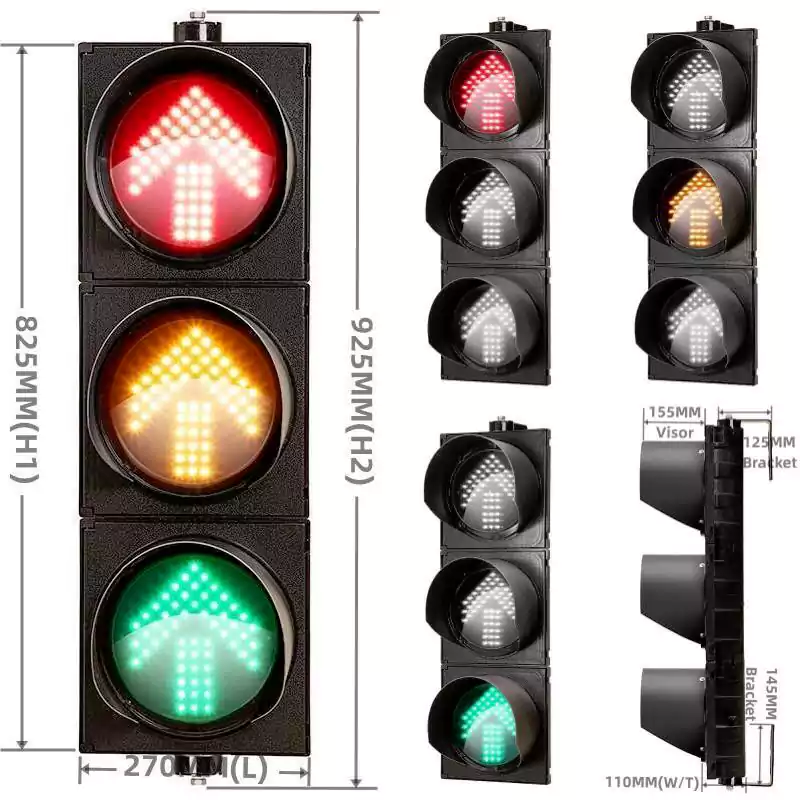

Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 925MM/825MM(No Bracket) Detachable visior: 155MM length

200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow is one kind of our Vehicle Traffic Light series, which  often includes ball/arrow vehicle traffic light and its additional traffic light countdown timer,reminding any driver when to go or stop for any crossing.

200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow has has 3 separate statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.

200MM(8 Inch) Traffic Semaphore With 3-Aspect Arrow is 360° rotable, it means this arrow traffic semaphore can be go-straight arrow traffic light or down arrow or right-turn arrow traffic light or left-turn arrow traffic light, you just rotoable it into certain degree.
