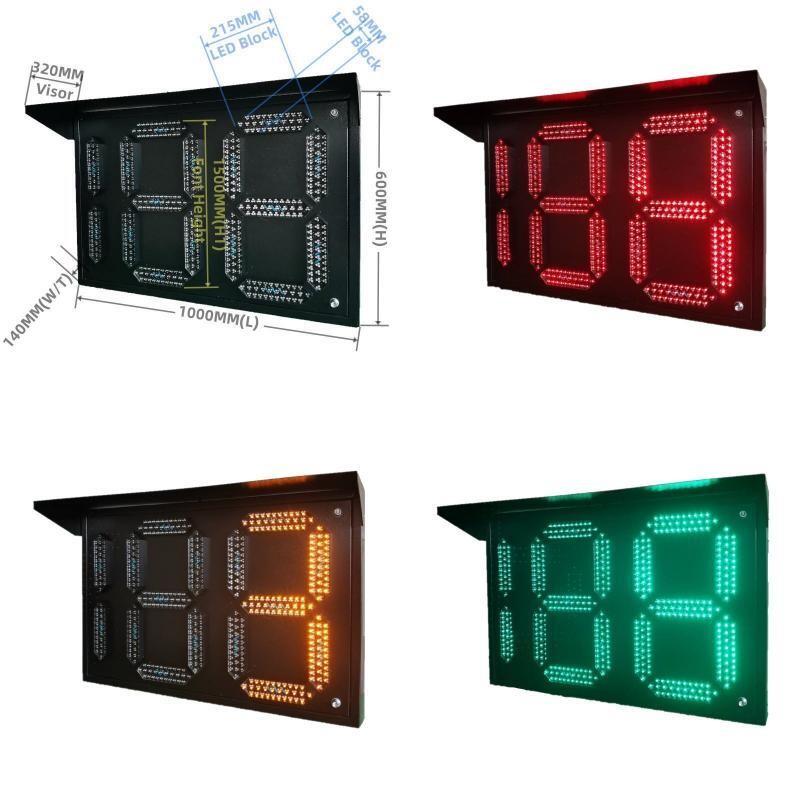

1000*600MM 2.5-Digit Traffic Light Countdown Timer

Model Number:
Traffic Light Countdown Timer NJGQ-DJS-188-1FT3-1000-600-540
Housing Body:
Die Casting Iron+PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
2.5-Digit 3-Color RYG Timer
LED Number:
16 LED Blocks
Shape:
Square With RYG Timer

Product Details

Bascinfo:

Product Size:
1000*600*140(20+100++=20)MM/Font Height 540MM
Lenses：
Transparent&Flat
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Outer Silicone Gel Sealing: IP65 For Max Waterproof And Dustproof

1-Aspect Double-Door Traffic Light Body: 1000600140MM/Font Height 540MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

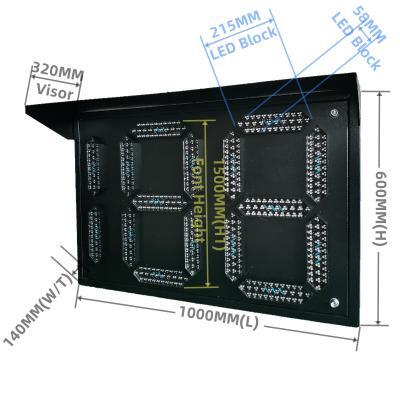

1000*600MM 2.5-Digit Traffic Light Countdown Timer, Single Face With Single Door

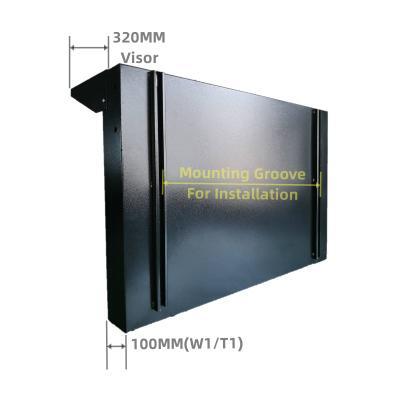

Length: 1000MM	Steel bracket: 125MM*145MM
Width/Thickness: 140MM	Top bracket and bottom bracket as one set
Height: 600MM	Detachable visior: 320MM length

1000*600MM 2.5-Digit Traffic Light Countdown Timer is one kind of 100MM to 500MM diameter traffic signal light countdown timer, which displays the remaining seconds of red/yellow/green light as additional visual aid tool for traffic.

1000*600MM 2.5-Digit Traffic Light Countdown Timer has outer silicone gel sealing for its LED module，so it can meet IP65 grade for Max waterproof and dustproof

1000*600MM 2.5-Digit Traffic Light Countdown Timer has only 1 aspect, but it has 3-in-1 design, which means it has red timer, yellow timer and green timer in total.

1000*600MM 2.5-Digit Traffic Light Countdown Timer has 3 statuses, including red countdown timer for stop, yellow countdown timer for caution, and green countdown timer for go.
