400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light

Model Number:
16 Inch 2-Color Pedestrian Crossing Light
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
2-In-1 Bi-Color RG Pedestrian
LED Number:
75PCS/R+124PCS/G
Shape:
Square/Round With RG Pedestrian

Product Details

Bascinfo:

Product Size:
490*160*555(475)MM/φ338/355MM
Lenses：
Transparent&Flat
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Square Shape Design: Max Design Space For Larger Look Than Rouand Shape

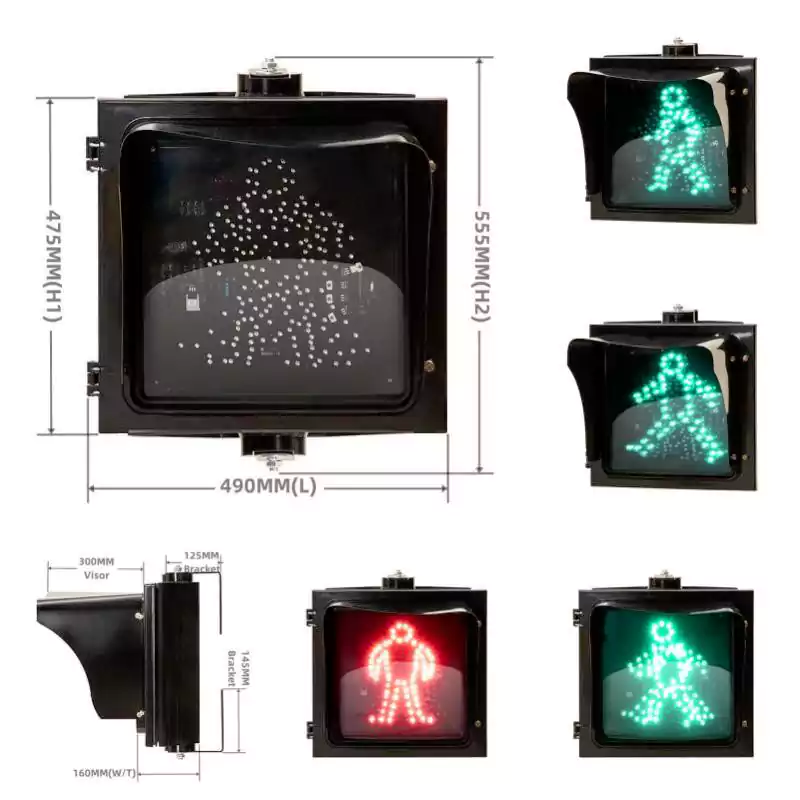

1-Aspect Attachable Traffic Light Body: 490160555(475)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light, 1 aspect/section as 400MM*1/401

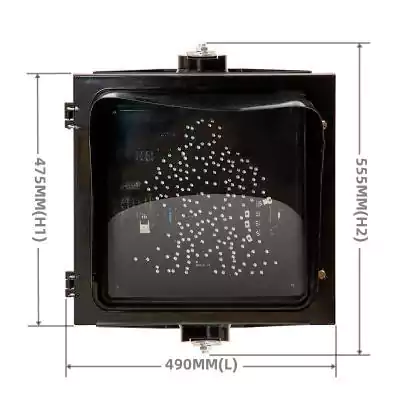

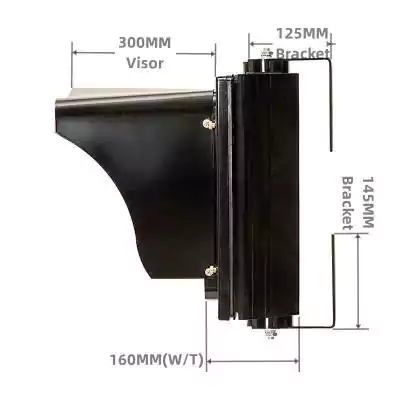

Length: 490MM	Steel bracket: 125MM*145MM
Width/Thickness: 160MM	Top bracket and bottom bracket as one set
Height: 555MM/475MM(No Bracket)	Detachable visior: 300MM length

400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light is one kind of our 100MM to 500MM Pedestrian Crossing Light, which often includes pedestrian crossing light and traffic light countdown timer, reminding any pedestrian when to cross or stop for any crossing.

400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light only has 1 aspect, but 2-in-1 design means it not only shows red pedestrian crossing light, but also displays green pedestrian crossing light, and these 2 designs will work in turn, one by one.

400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light has 2 statuses, including red pedestrian crossing light time for stop, and green pedestrian crossing light time for go.

400MM(16 Inch) 2-Color Red Green Pedestrian Crossing Light can add an aditional traffic light countdown timer into 2 aspects, then it will will more clearly remind any pedetrian to stop and cross at a road by its remaining red or green time.
