400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer

Model Number:
16 Inch 3-Aspect Pedestrian Sign NJGQ-RXDJS-400-3YS/FS3
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
Red And Green Pedestrians+Timer
LED Number:
56+120PCS/P+112PCS*2/T
Shape:
Round/Square By RG Pedestrian+RG Timer

Product Details

Bascinfo:

Product Size:
490*160*1425/1505MM+φ338/335MM Diameter
Lenses：
Transparent&Flat/Cobweb&Curved
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 4901601505/1425MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer, 3 aspects/sections as 400MM*3/403

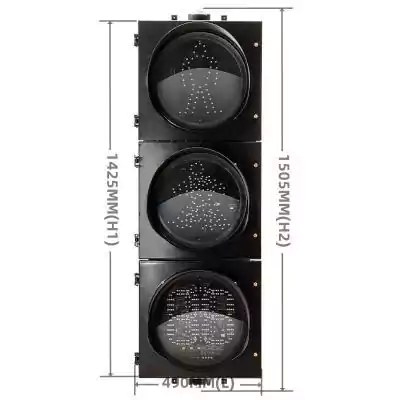

Length: 490MM	Steel bracket: 125MM*145MM
Width/Thickness: 160MM	Top bracket and bottom bracket as one set
Height: 1425/1505MM(No Bracket)	Detachable visior: 300MM length

400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer is one kind of our Pedestrian Traffic Light series, which often includes red&green pedestrian traffic light and its additional traffic light countdown timer, reminding any pedestrian when to go or stop for any crossing.

400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer has 2 statuses, including red traffic light time for stop and green traffic light time for go.

400MM(16 Inch) 3-Aspect Red Green Pedestrian Sign Traffic Light With Timer has its own countdown timer, it will will more clearly remind any cyclist to stop and cross at a road by its remaining red and green time.
