400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System

Model Number:
16 Inch Bi-Color Pedestrian Crosswalk System
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
2-In-1 Bi-Color RG Pedestrian
LED Number:
75PCS/R+124PCS/G
Shape:
Round With RG Pedestrian

Product Details

Bascinfo:

Product Size:
490*160*555(475)MM/φ338/355MM Diameter
Lenses：
Transparent&Flat
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

1-Aspect Attachable Traffic Light Body: 490160555(475)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC

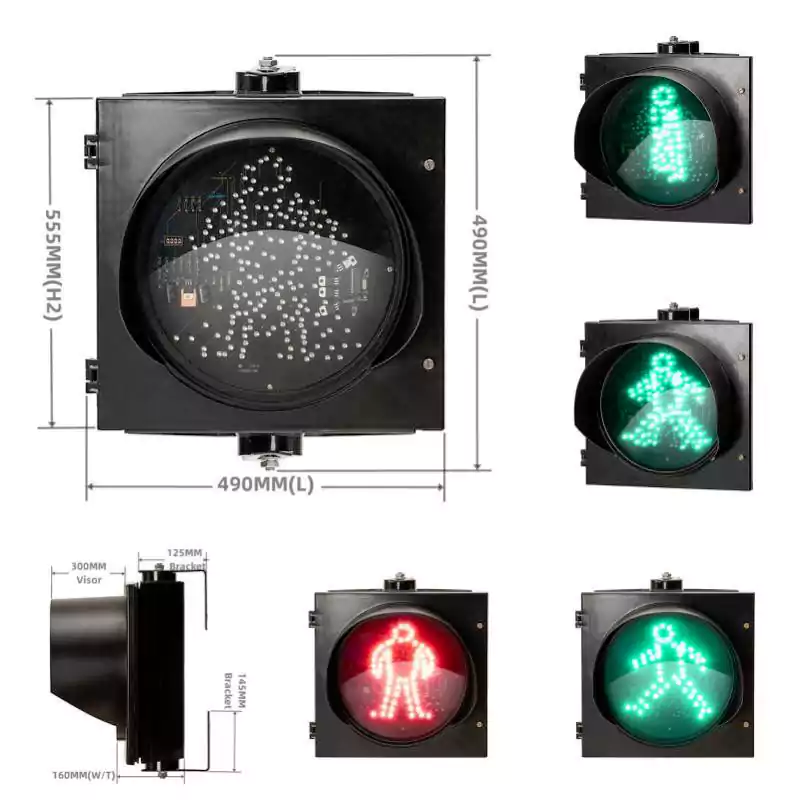

400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System, 1 aspect/section as 400MM*1/401
Length: 490MM	Steel bracket: 125MM*145MM
Width/Thickness: 160MM	Top bracket and bottom bracket as one set
Height: 555MM/475MM(No Bracket)	Detachable visior: 300MM length

400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System is one kind of our 100MM to 500MM pedestrian crosswalk system, which often includes pedestrian crosswalk light and pedestrian crosswalk Countdown Timer, reminding any pedestrian when to cross or stop for any crossing.

400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System only has 1 aspect, but 2-in-1 design means it not only shows red pedestrian crosswalk light, but also displays green pedestrian crosswalk light, and these 2 designs will work in turn, one by one.

400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System has 2 statuses, including red pedestrian crosswalk light time for stop, and green pedestrian crosswalk light time for go.

400MM(16 Inch) Bi-Color Red Green Pedestrian Crosswalk System can add an aditional traffic light countdown timer into 2 aspects, then it will will more clearly remind any pedestrian to stop and cross at a road by its remaining red or green time.
