Product Details
Bascinfo:
- Product Size:
- 400*145*455(375)MM/φ254/268MM
- Lenses：
- Transparent&Flat
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Lamp
Product Details:
Transparent Lens Design: High Resolution And High Penetration For High Light Effect

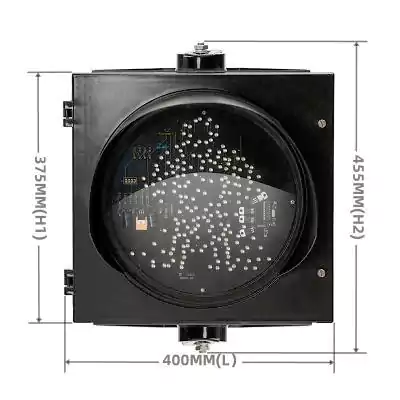

1-Aspect Attachable Traffic Light Body: 400*145*455(375)MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|

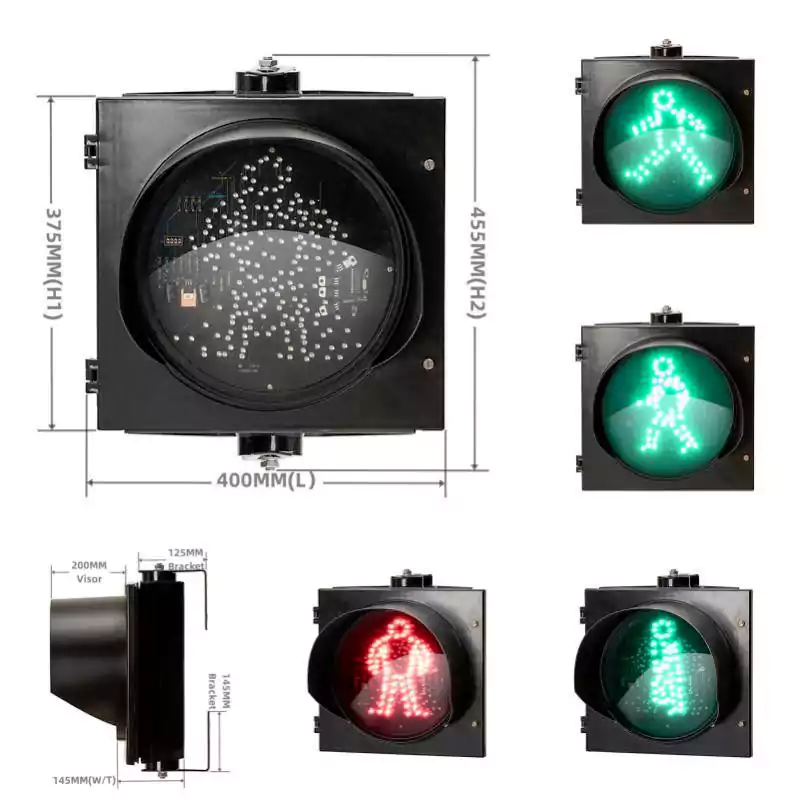

| 300MM(12 Inch) 1-Aspect Bi-Color RG Pedestrian Signal, 1 aspect/section as 300MM*1/301 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 455MM/375MM(No Bracket) | Detachable visior: 200MM length |
300MM(12 Inch) 1-Aspect Bi-Color RG Pedestrian Signal is one kind of our 100MM to 500MM Pedestrian Signal, which often includes Pedestrian Signal and Traffic Light Countdown Timer, reminding any pedestrian when to cross or stop for any crossing.
300MM(12 Inch) 1-Aspect Bi-Color RG Pedestrian Signal only has 1 aspect, but 2-in-1 design means it not only shows red pedestrian signal, but also displays green pedestrian signal, and these 2 designs will work in turn, one by one.
300MM(12 Inch) 1-Aspect Bi-Color RG Pedestrian Signal has 2 statuses, including red Pedestrian Signal time for stop, and green Pedestrian Signal time for go.
300MM(12 Inch) 1-Aspect Bi-Color RG Pedestrian Signal can add a aditional traffic light countdown timer into 2 aspects, then it will will more clearly remind any pedetrian to stop and cross at a road by its remaining red or green time.
