Product Details
Bascinfo:
- Product Size:
- 400*145*455MM/φ300+254/268MM
- Lenses：
- Transparent&Flat
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Lamp
Product Details:
Square Shape Design: Max Design Space For Larger Look Than Rouand Shape

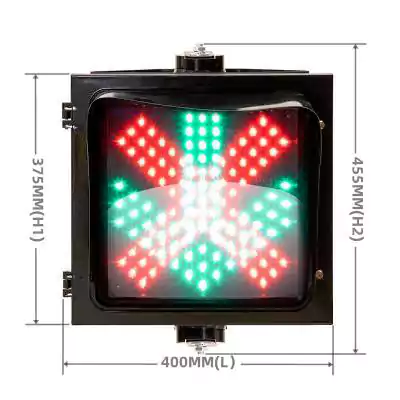

1-Aspect Attachable Traffic Light Body: 400*145*455(375)MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|

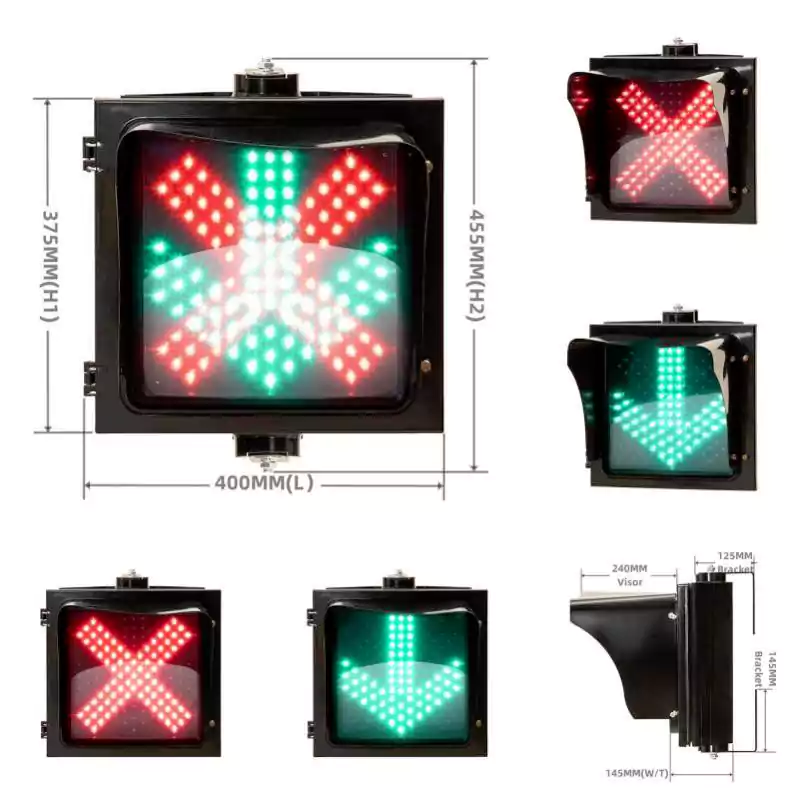

| 300MM(12 Inch) 1-Aspect Red Cross Green Arrow Lane Control Light, 1 aspect/section as 300MM*1/301 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 455MM/375MM(No Bracket) | Detachable visior: 240MM length |
300MM(12 Inch) 1-Aspect Red Cross Green Arrow Lane Control Light is one kind of is one kind of our Lane Control Signal from 100MM to 500MM traffic signal light, which inludes red cross for stop and green arrow for go in paticular traffic lane.
300MM(12 Inch) 1-Aspect Red Cross Green Arrow Lane Control Light has 1 aspect only, and 2-in-1 design has 2 designs together, which means it can not only show Red Cross Lane Control Light, but also dispaly Green Arrow Lane Control Light.
300MM(12 Inch) 1-Aspect Tunnel Traffic Light has 2 statuses, including ed Cross Lane Control Light time for stop, and Green Arrow Lane Control Light time for go.
