Product Details
Bascinfo:
- Product Size:
- 400*145*455MM/φ300+254/268MM
- Lenses：
- Transparent&Flat
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Lamp
Product Details:
Transparent Lens Design: High Resolution And High Penetration For High Light Effect

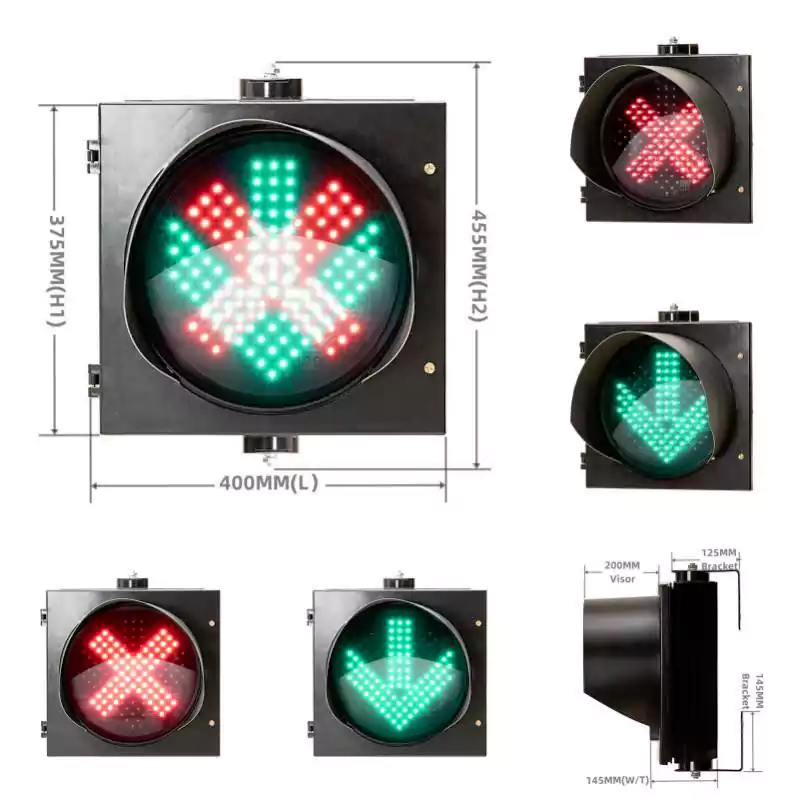

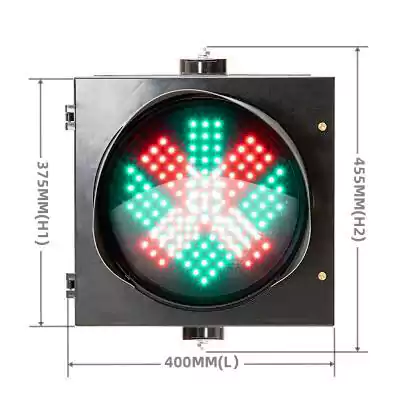

1-Aspect Attachable Traffic Light Body: 400*145*455(375)MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|
| 300MM(12 Inch) 1-Aspect Tunnel Led Traffic Lights, 1 aspect/section as 300MM*1/301 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 455MM/375MM(No Bracket) | Detachable visior: 200MM length |
300MM(12 Inch) 1-Aspect Tunnel Led Traffic Lights is one kind of is one kind of our Lane Control Signal from 100MM to 500MM traffic signal light, which inludes red cross for stop and green arrow for go in paticular traffic lane.
300MM(12 Inch) 1-Aspect Tunnel Led Traffic Lights has 1 aspect only, and 2-in-1 design has 2 designs together, which means it can not only show Red Cross Lane Control Light, but also dispaly Green Arrow Lane Control Light.
300MM(12 Inch) 1-Aspect Tunnel Led Traffic Lights has 2 statuses, including Red Tunnel Traffic Light time for stop, and Green Tunnel Traffic Light time for go.
