Product Details
Bascinfo:
- Product Size:
- 400*145*1580/1500MM+φ338/335MM Diameter
- Lenses：
- Optional
- Wavelength:
- Optional
- Input Voltage:
- Optional
- Light Source:
- Optional
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Module
Product Details:
Transparent Lens Design: High Resolution And High Penetration For High Light Effect

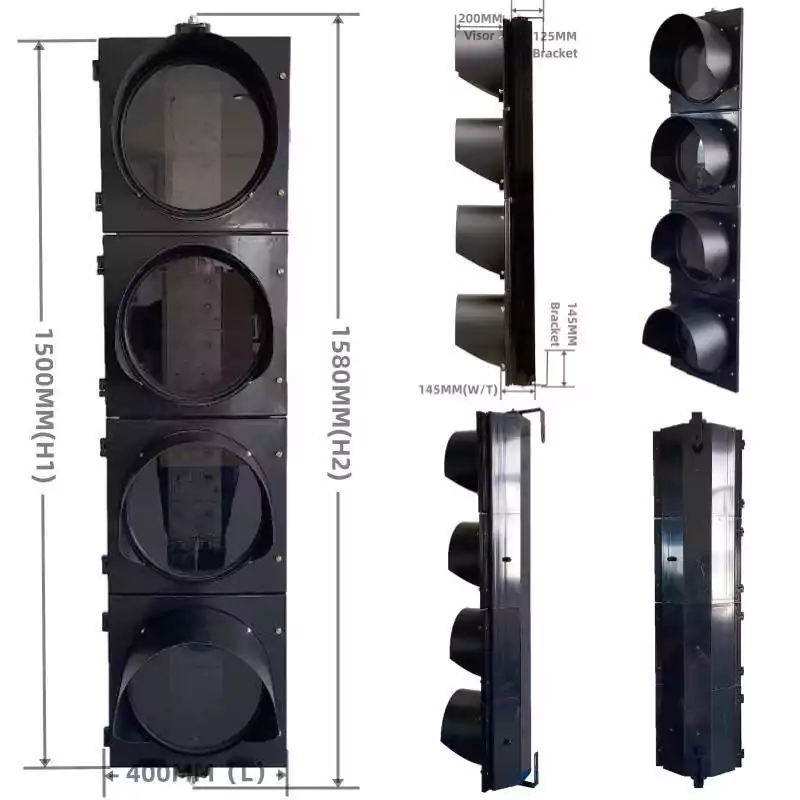

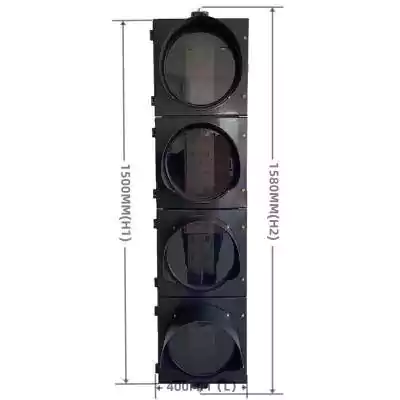

4-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 400*145*1580/1500MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|
| 12-Inch(300MM) Ball LED Traffic Light System With Timer, 4 aspects/sections as 300MM*4/304 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 1580/1500MM(No Bracket) | Detachable visior: 200MM length |
12Inch(300MM) 4-Section PC Plastic Traffic Light Housing Body is one type of our 100MM to 500MM diameter traffic light housing body, which is the outer part of whole traffic light, this part and its inner part of traffic light LED modules together make a whole set.
12Inch(300MM) 4-Section PC Plastic Traffic Light Housing Body has 3 sections in total, and each section can hold one LED module as required for making the whole traffic light as a whole set.
12Inch(300MM) 4-Section PC Plastic Traffic Light Housing Body has its own addable and detachable design, that means it can be easily added to be 4 or more sections by placing long bolts and nuts through the connecting parts, and vice versa.

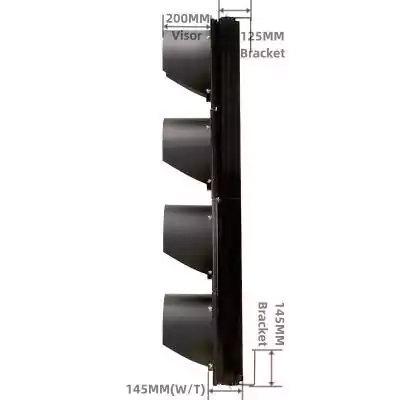

12Inch(300MM) 4-Section PC Plastic Traffic Light Housing Body has 2 standard accessories, inluding 1 set of metal steel brackets and 1 piece of PC plastic visors. Top bracket and bottom bracket are considered as one set for installing into a traffic light pole. Each visor is fixed into the front of each traffic light body, providing a better viewing angle for any driver and pedestrian on road.
