Small Mini Size Design: 168*140*265MM
  • Model Number:
  • 4 Inch 1-Aspect Ball Shape LED Traffic Lights
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red/Yellow/Green Ball, Single Color
  • LED Number:
  • 26PCS/R+26PCS/Y+26PCS/G
  • Shape:
  • Round With Ball Design

Product Details

Bascinfo:

  • Product Size:
  • 168*140*265(175+90)MM/100MM Diameter
  • Lenses:
  • Transparent & Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

100MM(4 Inch) 1-Aspect Red/Yellow/Green Ball Shape Traffic Light is one part of 100MM led traffic light series, which include vehicle traffic light and pedestrian traffic light, as well as countdown timer with 1/2/3 or more aspects.

100MM(4 Inch) diameter is a kind of mini size led traffic light, common for small road, parking lot and car washing station, as well as teaching tools.

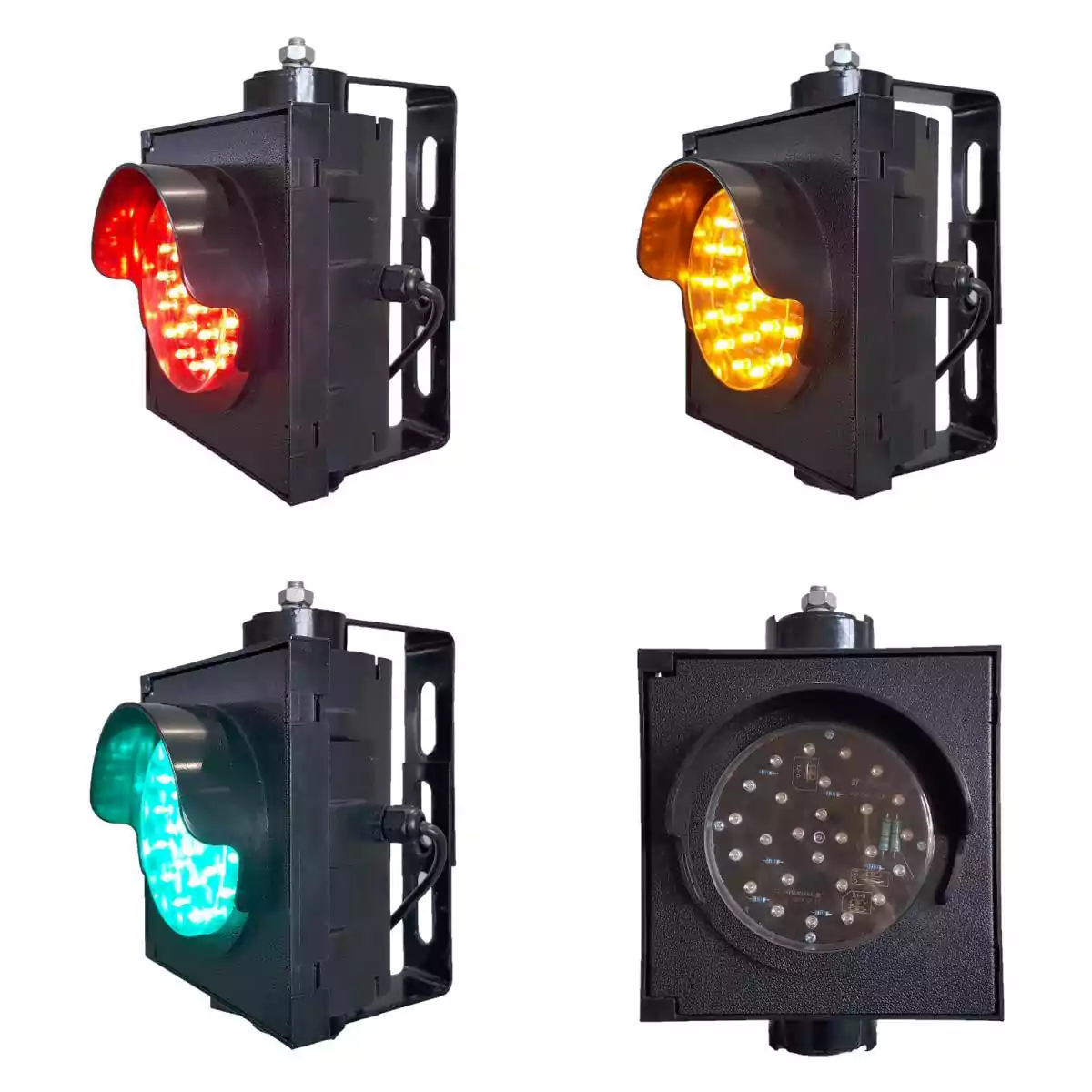

100MM 1-Aspect Red Yellow Green Ball Shape Traffic Light 100MM 1-Aspect Red Yellow Green Ball Shape Traffic Light

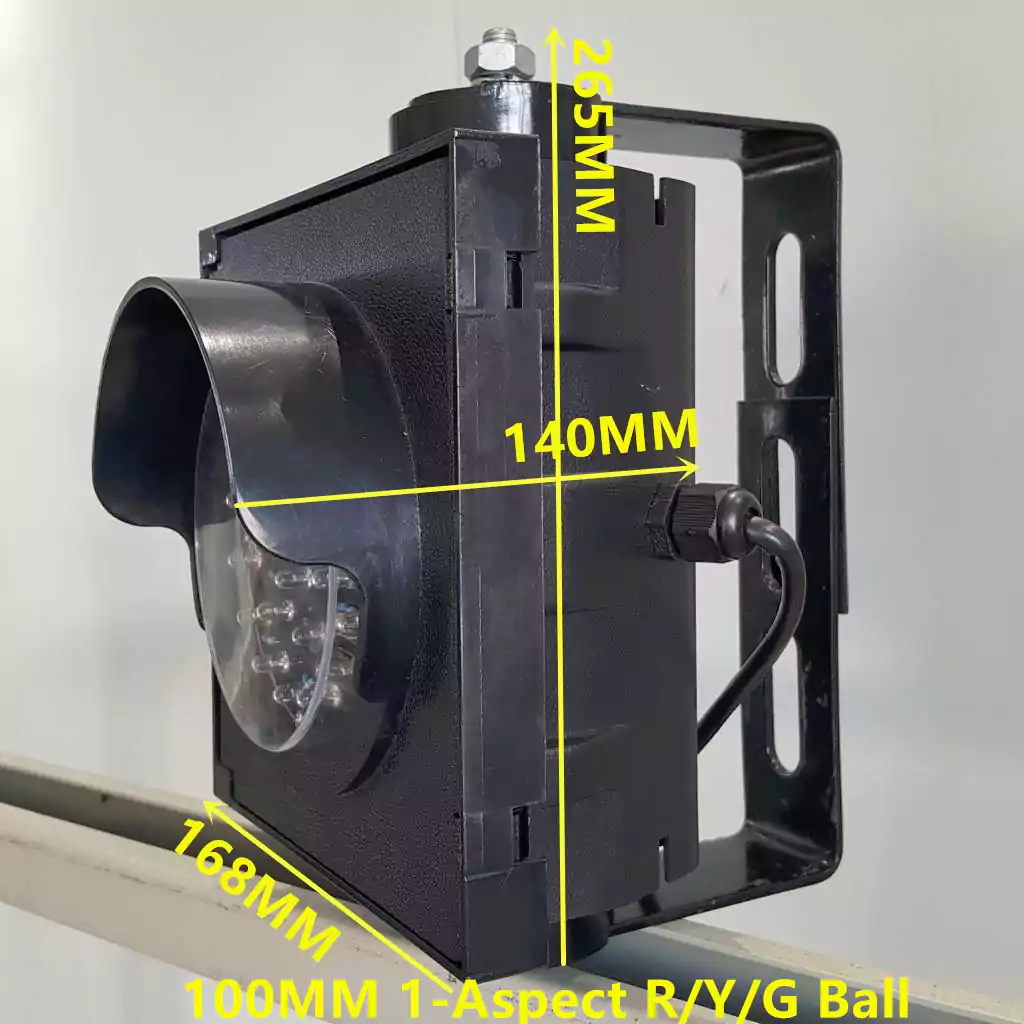

100MM(4 Inch) Led Traffic Light, 1 aspect/section as 100MM*1/101
Length: 168MM Steel bracket: 125MM*145MM
Width/Thickness: 140MM Top bracket and bottom bracket as one set
Height with bracket: 265MM Integrated visior: 40MM length, non-detachable

Small Mini Size Design: 168*140*265MM
