Small Mini Size Design: 120*120*70MM
  • Model Number:
  • 4 Inch Traffic Light LED Module
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:

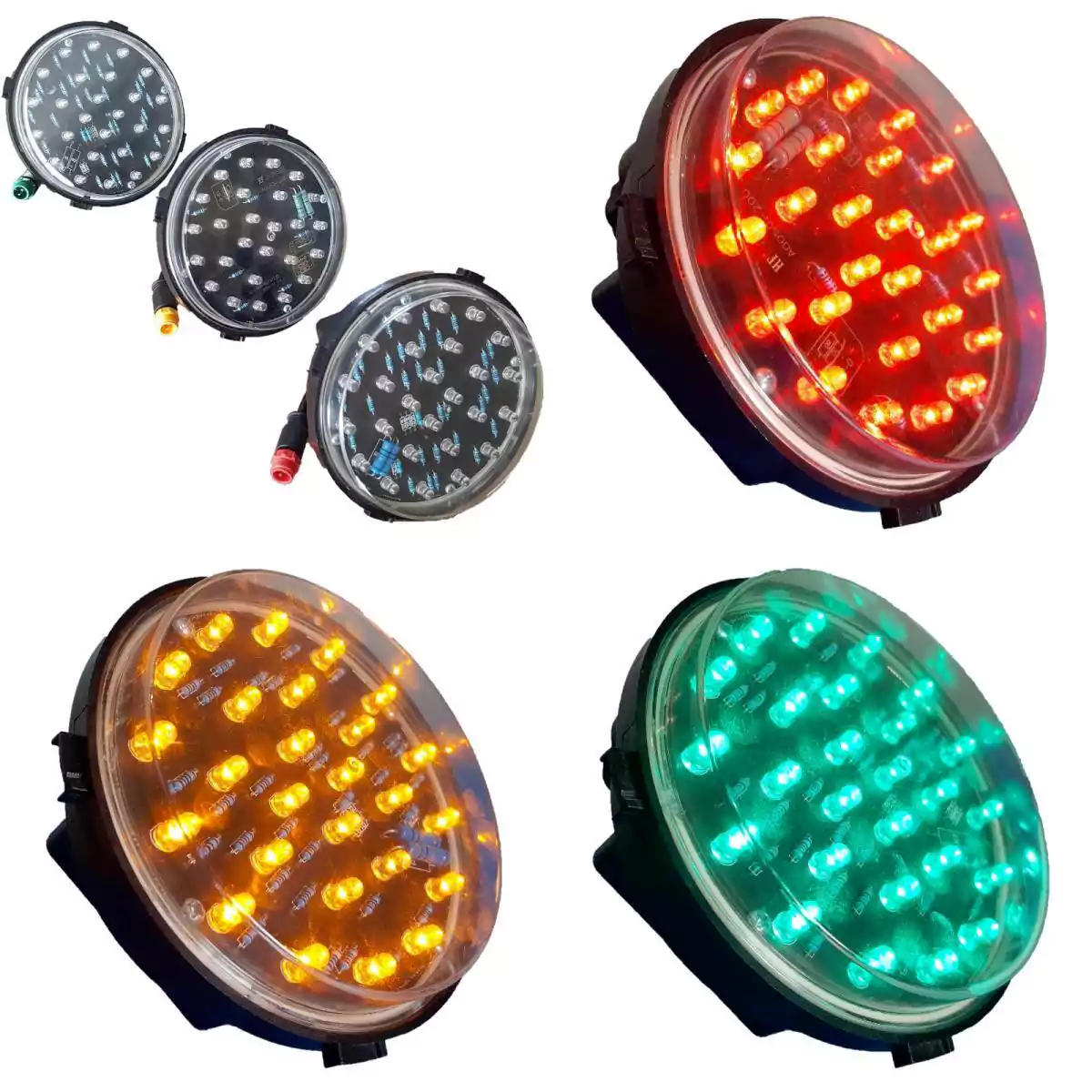

  • Red/Yellow/Green Ball, Single Color
  • LED Number:
  • 26PCS/R+26PCS/Y+26PCS/G
  • Shape:
  • Round With Ball Design

Product Details

Bascinfo:

  • Product Size:
  • 120*120*70MM/100MM Diameter
  • Lenses:
  • Transparent & Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

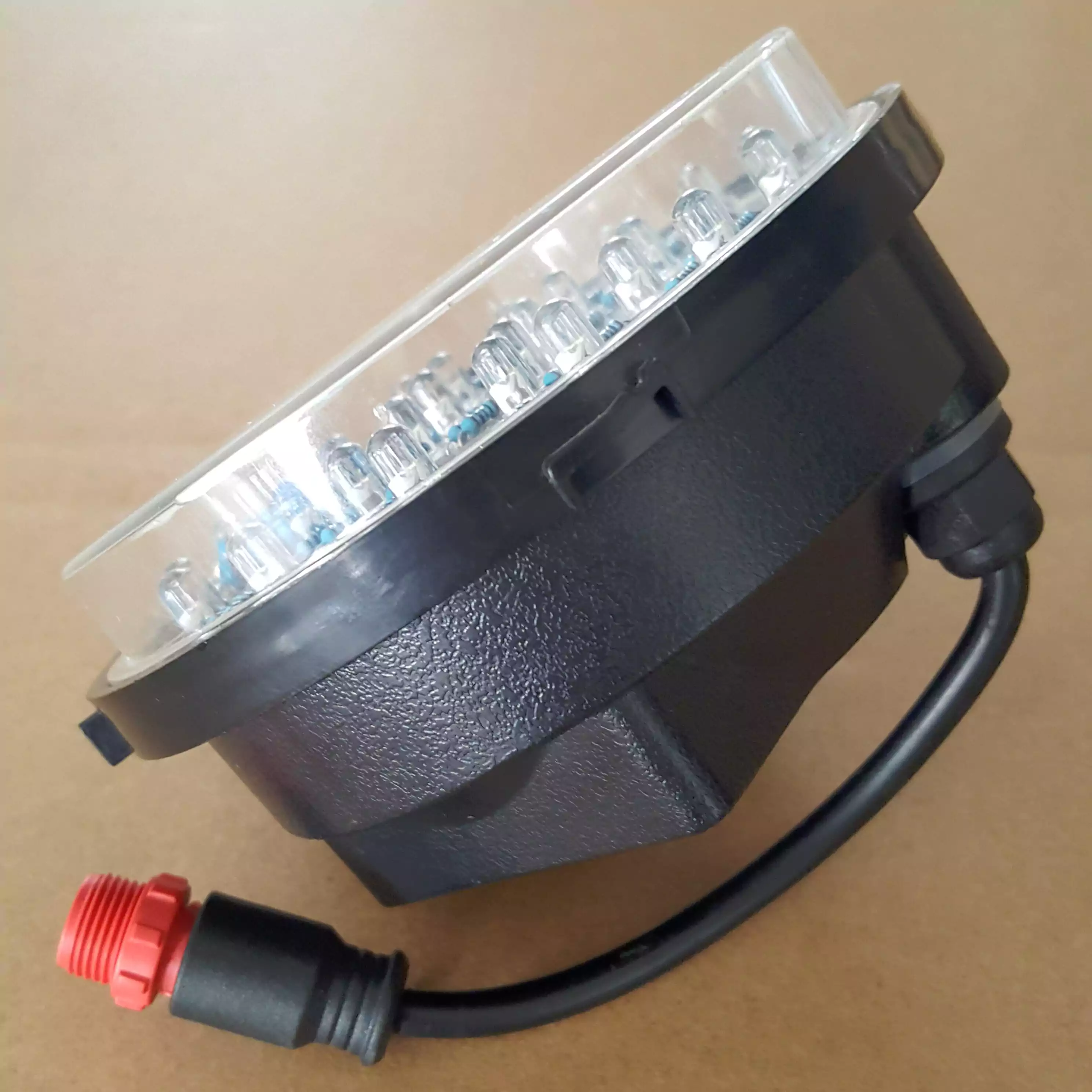

100MM(4 Inch) Traffic Light LED Module is the inner part of our 100MM led traffic light, which also includes 100MM housing body as its outer part, these 2 parts together make one whole piece of our 100MM traffic light

100MM(4 Inch) diameter is a kind of mini size traffic light, common for small road, parking lot and car washing station, as well as teaching tools.

100MM Traffic Light LED Module 100MM Traffic Light LED Module
Traffic Light LED Module 100MM(4 Inch) NJGQ-DX-100-1YS1
Length: 70MM Steel bracket: 125MM*145MM
Width: 70MM Top bracket and bottom bracket as one set
Heright/Thickness: 70MM Integrated visior: 40MM length, non-detachable

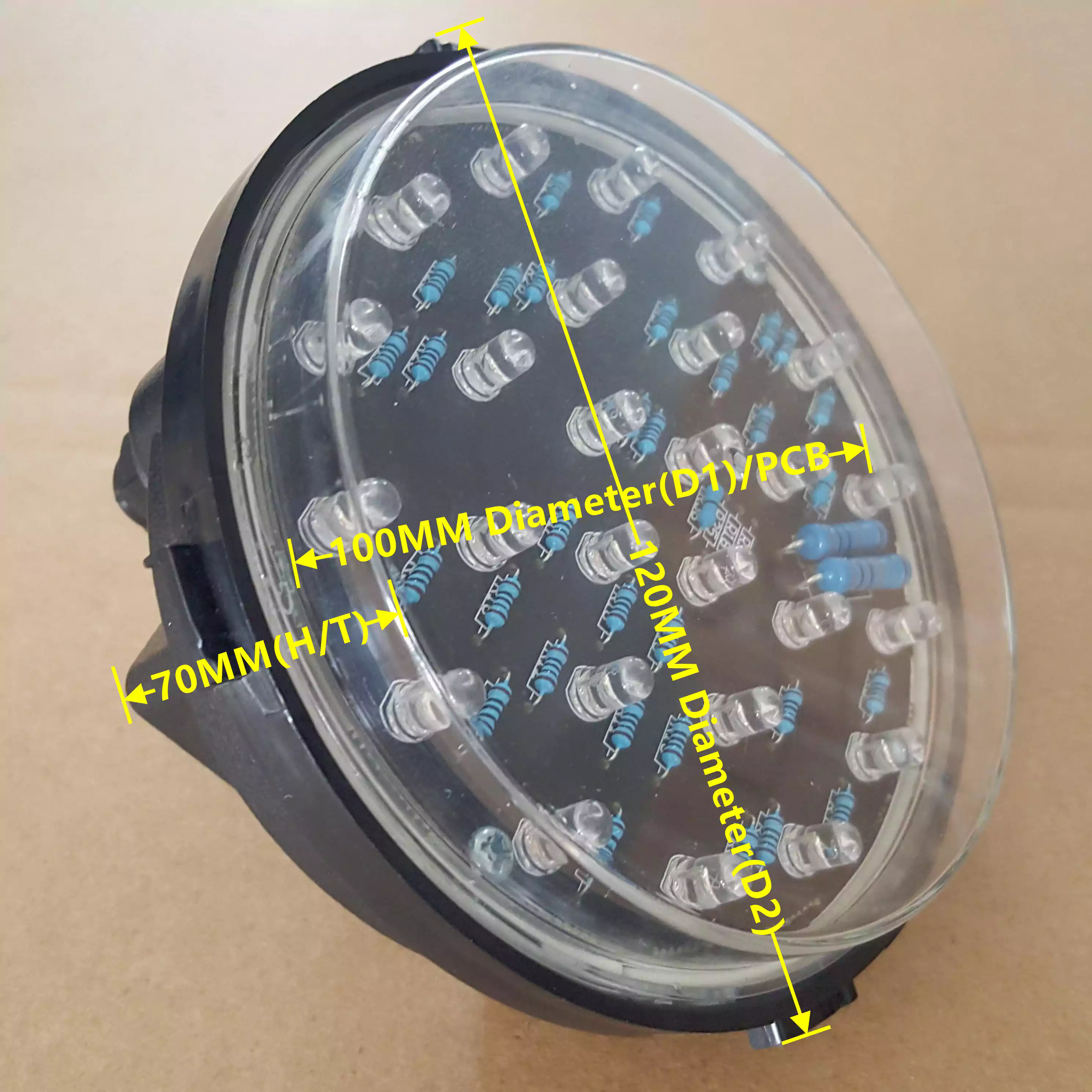

Small Mini Size Design: 120*120*70MM
