200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light

200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light

200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light is one kind of 200MM led traffic light, which also includes 200mm vehicle led traffic light, 200MM coutdown timer, 200MM lane control light.
  • Model Number:
  • 8 Inch 1-Aspect Red Green Pedestrian Traffic Light
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red Man+Dynamic Green Man
  • LED Number:
  • 50PCS/R+120PCS/G
  • Shape:
  • Round With RG Pedestrian
CONTACT US

Product Details

Bascinfo:

  • Product Size:
  • 270*110*375(270)MM/184+200MM φDiameter
  • Lenses：
  • Transparent&Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • ＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

Double Color Design: 2 Colors Together For Min Cost

200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light 200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light

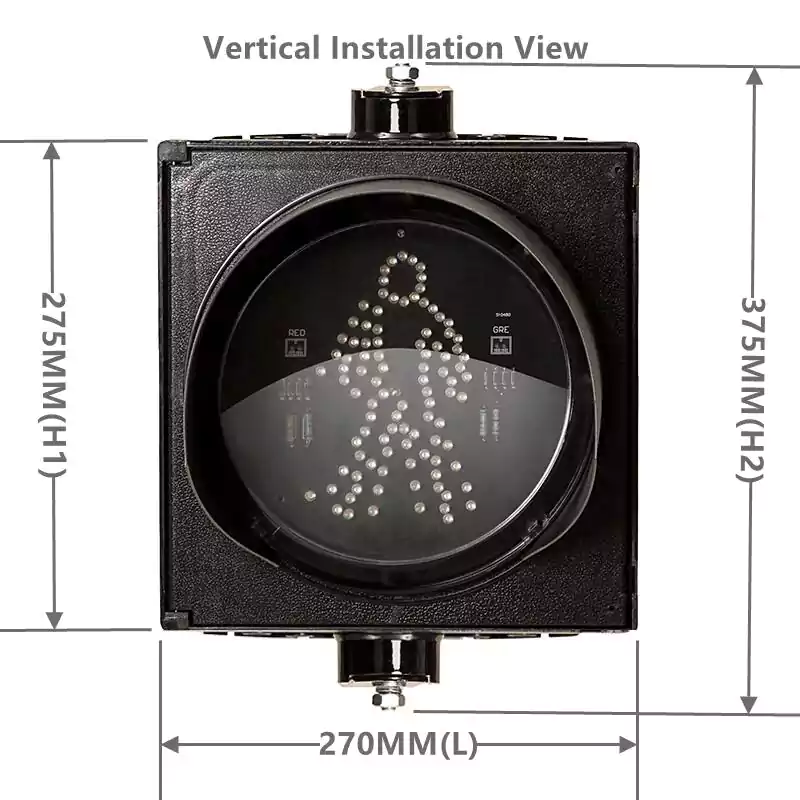

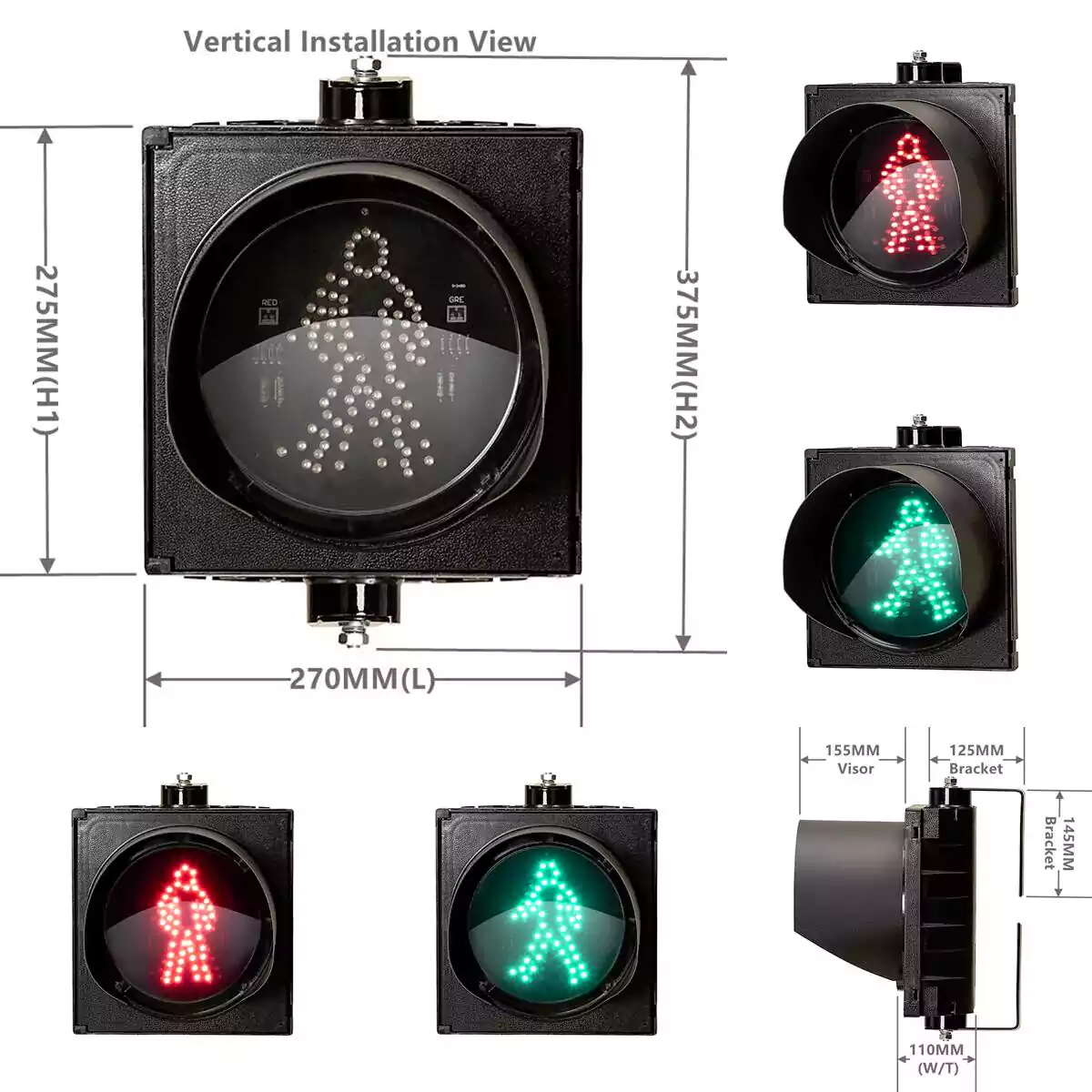

Pedestrian Traffic Light 200MM NJGQ-RX-200-1YS2
Length: 270MM Steel bracket: 125MM*145MM
Width: 110MM Two Optional Lenses:Transparent&Flat/Cobweb&Curve
Heright/Thickness: 275(No Brackets)/375MM Detachable Visior: 155MM Length

200MM(8 Inch) 1-Aspect Red Green Pedestrian Traffic Light is one kind of 200MM led traffic light, which also includes 200mm vehicle led traffic light, 200MM coutdown timer, 200MM lane control light.
