Product Details
Bascinfo:
- Product Size:
- 210*210*100MM/184+200MM Diameter
- Lenses：
- Transparent&Flat/Cobweb&Curved
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Lamp
Product Details:
Normal Size Design: 210*210*100MM
Double O-Shape Sealing Rings：Inner Ring+Ourter Ring For Max Sealing Performance
 |
 |
|---|---|
| Traffic Light LED Module 200MM NJGQ-DX-200-1YS | |
| Length: 210MM | Double Sealing Ring: Inner ring + outer ring |
| Width: 210MM | Transparent Lens: High penetration for high lightness |
| Heright/Thickness: 100MM | Flexible Power Supply: 12-24VDC Or 110-220VAC |

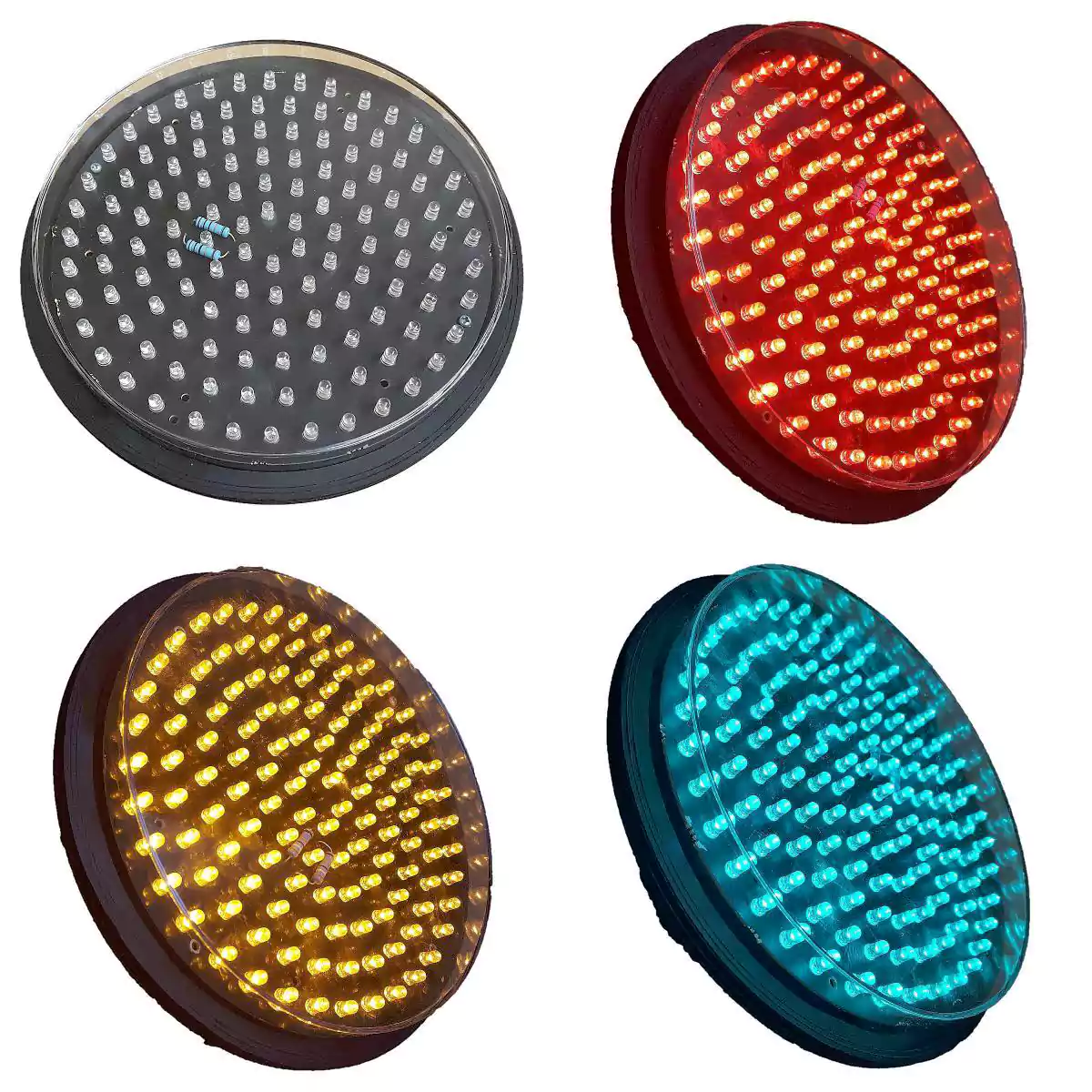

200MM(8 Inch) Traffic Light LED Module is the inner part of our 200MM led traffic light, which also includes 200MM housing body as its outer part, these 2 parts together make one whole piece of our 200MM traffic light.

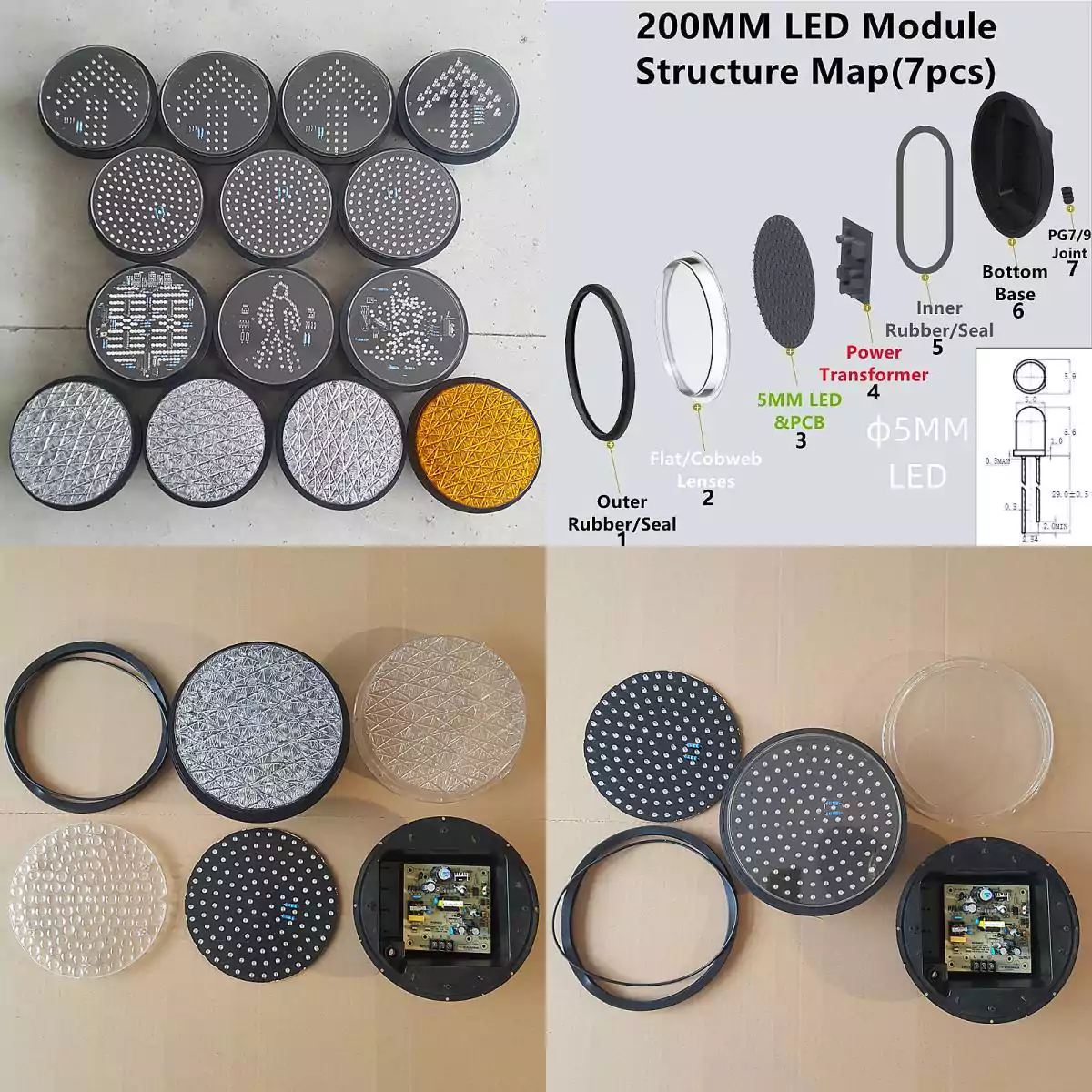

Traffic Light LED Module includes its all electrical parts, an inner housing body for holding all these electrical parts, an inner sealing ring for first-level water and dust protection, a transparent and flat lens, and an outer sealing ring for second-level waterproof and dustproof.
Among its electrical parts, it has 5MM diameter LEDs, Printed Circuit Board named as PCB, suitable resistors for adjusting the brightness, possible power transformer if it is direct current input supply.
From its design, Traffic Light LED Module is devided into several kinds, including vehicle traffic light LED Module as ball traffic light LED Module and arrow traffic light LED Module, pedestrain traffic light LED Module, traffic light countdown timer LED Module, as well as lane control light LED Module.
From its color, Traffic Light LED Module can be single color as red named as R or yellow named as Y or green named as G, double-color as red&green named as RG, as well as triple-color as red&yellow&green named as RYG.
From its shape, Traffic Light LED Module has both round body and suqare body for your choice, and it will be suitable for its outer round or suqare housing body together as a whole set.
